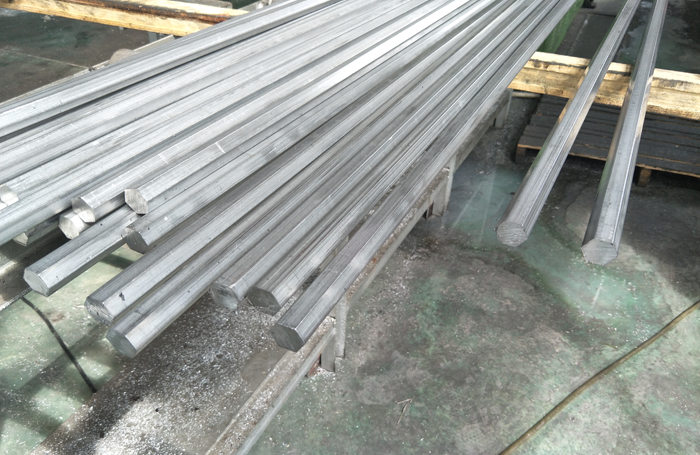

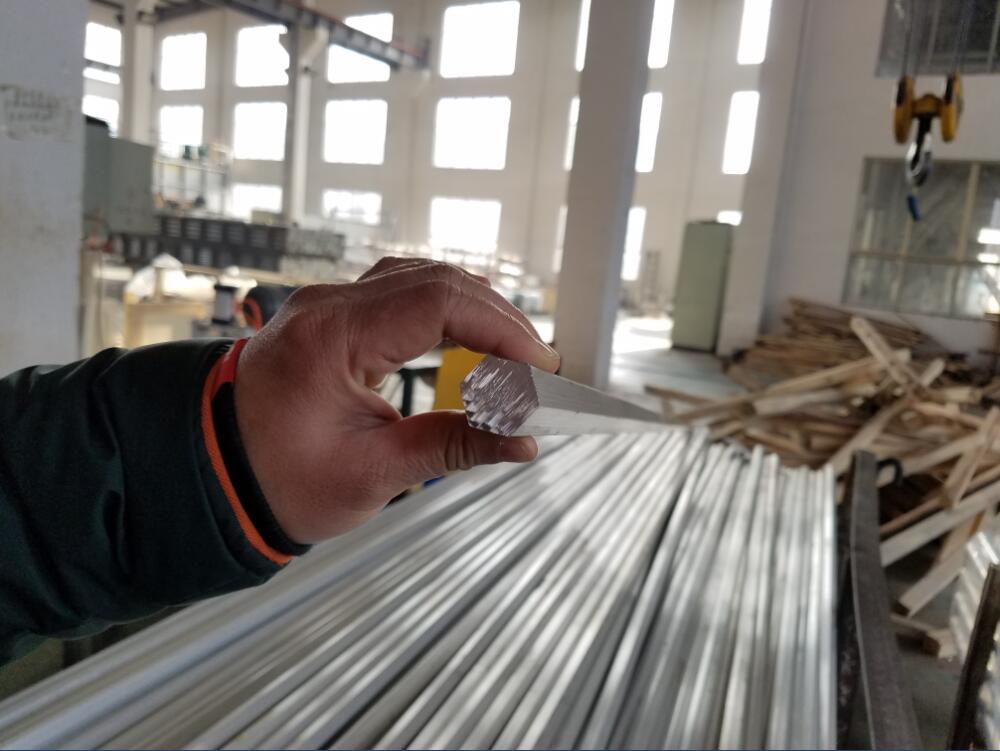

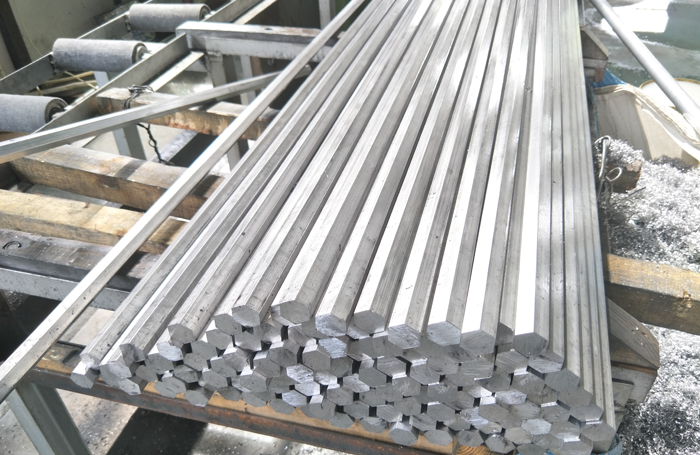

2024 hexagonal aluminum bar has high mechanical properties and excellent resistance to fatigue. During machining, it creates quite long chips, therefore it is not well suited for automatic lathes.
Product advantages of 2024 hexagonal aluminum bar:
1. Accuracy:+/-0.02mm
Purpose: to guarantee the automatic processing of high precision machining parts.
2. Straightness <0.3m/2.5m
Purpose: Guarantee the speed requirements>8000 rpm, no material jittery.
3. Coarse crystal ring<0.5mm
Purpose: To reduce the amount of turning by the customer, improve efficiency and reduce costs.
4. Grain control
Purpose: to ensure that the 2、5、6、7 series aluminum alloy in the hard anodizing, anodizing uniform, color bright and beautiful.
5. Turning performance improvement
To improve the processing of uniform chip, improve the processing of yards yield.
Chalco Aluminium stocks a variety of aluminum alloy bars (rods) grades and sizes tailored to your needs and specifications.
Extruded Aluminum |
Al-Alloy | Temper | Stretching Test |
Hardness HB |
Temper | We Are Able To Produce Sizes Of | ||||||
Tensile Strength Rm/Mpa |
Yield Strength Rp0.2/Mpa |
Elongation A% |
OD | ID | Diagonal | A/F | Length | |||||
hexagonal aluminum bar | 2024 | O | <245 | <125 | >12 | 47 |
O T3/T351 T4/T451 T6/T8 F |
3mm~ 130mm |
3mm~ 100mm |
3mm~ 130mm |
5mm~ 112mm |
1000mm~ 6000mm |
T4 | >410 | >305 | >12 | 120 | ||||||||
T6 | >345 | >245 | >12 | 130 |
Annealing | TO | |||||||
Hot work | T1 | H111 | H112 | |||||
Cold work | H12 | H14 | H16 | H18 | H32 | H34 | H116 | H321 |
Heat treatment | T3 | T4 | T5 | T6 | T8 | |||
Over aging treatment | T73 | T74 | T76 | T79 | ||||
Stress relieved | T351 | T451 | T651 | T7351 | T7451 | T7651 | T7951 | T851 |
Material Type | Material shapes | Application | Material & Temper |
Extruded bars Cold drawn bars |
Round bars |
Screw & Nuts |
2024 - T3 / T351 / T851 |
hexagonal bar | Aircraft component | 2024 - T351 / T851 | |
Seamless drawn tube Seamless extruded tube |
Seamless rectangular tube | Baggage bar tube | 2024 - T3 |
Seamless profile tube | Tail fin | 2024 - T351 / T651 | |
Seamless round tube | Aircraft seat beam tube | 2024 - T3 | |
Aircraft tie rod | 2024 - T351 | ||
Extruded profiles | Various shape | Tail fin | 2024 - T3511 / T6511 |
Aircraft component | 2024 - T3511 |
