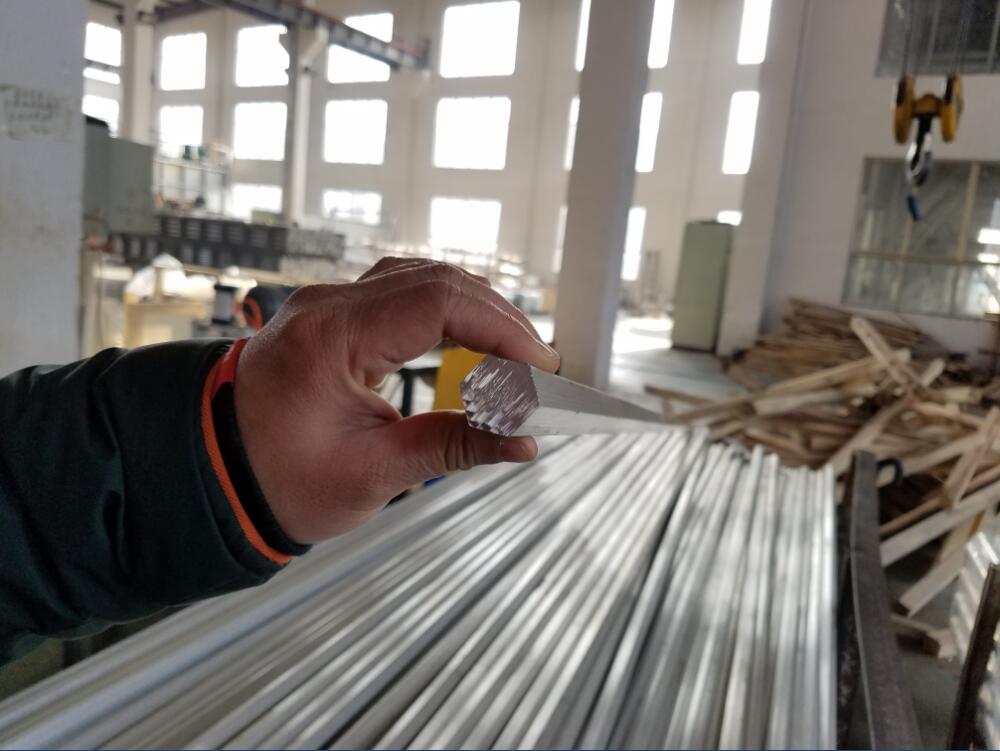

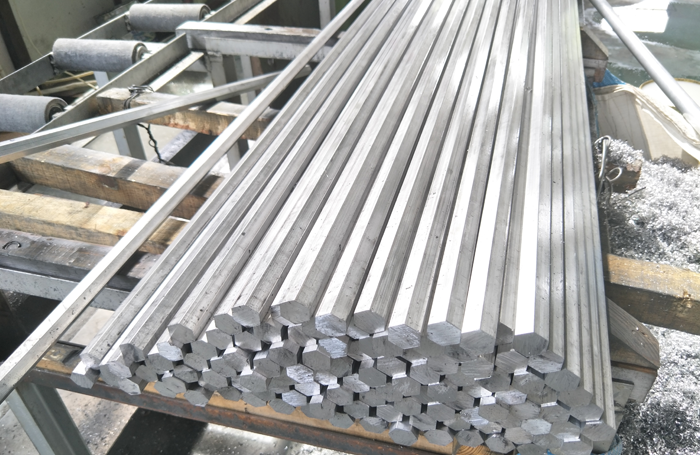

5083 hexagonal aluminum bar has highest mechanical properties of Mg-containing alloys, low operating temperatures, which is widely used for vessel construction.
5083 round aluminum bar rod bill is resistant to attack by seawater and general industrial environments.
Product advantages of 5083 hexagonal aluminum bar:
1. Accuracy:+/-0.02mm
Purpose: to guarantee the automatic processing of high precision machining parts.
2. Straightness <0.3m/2.5m
Purpose: Guarantee the speed requirements>8000 rpm, no material jittery.
3. Coarse crystal ring<0.5mm
Purpose: To reduce the amount of turning by the customer, improve efficiency and reduce costs.
4. Grain control
Purpose: to ensure that the 2、5、6、7 series aluminum alloy in the hard anodizing, anodizing uniform, color bright and beautiful.
5. Turning performance improvement
To improve the processing of uniform chip, improve the processing of yards yield.
Chalco Aluminium stocks a variety of aluminum alloy bars (rods) grades and sizes tailored to your needs and specifications.
Extruded Aluminum |
Al-Alloy | Temper | Stretching Test |
Hardness HB |
Temper | We Are Able To Produce Sizes Of | ||||||
Tensile Strength Rm/Mpa |
Yield Strength Rp0.2/Mpa |
Elongation A% |
OD | ID | Diagonal | A/F | Length | |||||
hexagonal aluminum bar | 5083 | H112 | >275 | >110 | >12 | 85 |
H111 H112 H32 H34 F |
3mm~ 130mm |
3mm~ 100mm |
3mm~ 130mm |
5mm~ 112mm |
1000mm~ 6000mm |
O | <355 | >120 | >14 | 50 |
Annealing | TO | |||||||
Hot work | T1 | H111 | H112 | |||||
Cold work | H12 | H14 | H16 | H18 | H32 | H34 | H116 | H321 |
Heat treatment | T3 | T4 | T5 | T6 | T8 | |||
Over aging treatment | T73 | T74 | T76 | T79 | ||||
Stress relieved | T351 | T451 | T651 | T7351 | T7451 | T7651 | T7951 | T851 |
Material Type | Material shapes | Application | Material & Temper |
Extruded bars Cold drawn bars |
|||
Vessel component | 5083 - H321 / H116 | ||
Seamless drawn tube Seamless extruded tube |
Seamless rectangular tube | Vessel tube | 5083 - H112 |
