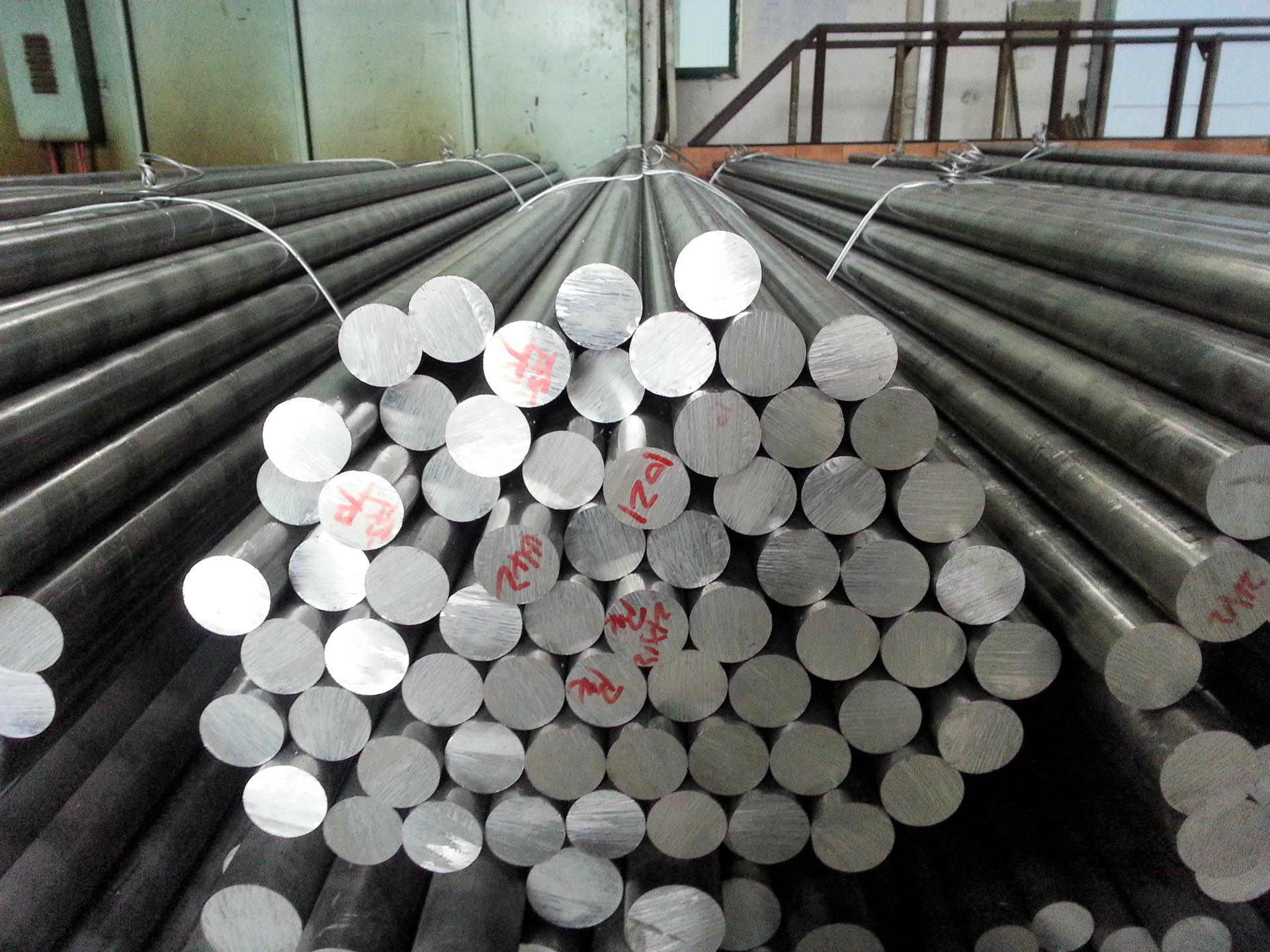

6063-t6 round aluminum bar rod

6063 round aluminum bar rod billet has very good corrosion resistance and good anodizing quality, which is medium strength, is suitable for welding and anodizing.

Product advantages of 6063 round aluminum bar rod billet:
1. Accuracy:+/-0.02mm
Purpose: to guarantee the automatic processing of high precision machining parts.
2. Straightness <0.3m/2.5m
Purpose: Guarantee the speed requirements>8000 rpm, no material jittery.
3. Coarse crystal ring<0.5mm
Purpose: To reduce the amount of turning by the customer, improve efficiency and reduce costs.
4. Grain control
Purpose: to ensure that the 2、5、6、7 series aluminum alloy in the hard anodizing, anodizing uniform, color bright and beautiful.
5. Turning performance improvement
To improve the processing of uniform chip, improve the processing of yards yield.

Chalco Aluminium stocks a variety of aluminum alloy bars (rods) grades and sizes tailored to your needs and specifications.

Send us email

Specification

Performance

Application

Alloy Series: 6063
This alloy has a moderate strength, a certain degree of corrosion resistance, high processability. Good Oxidation color and other advantages make it the most widely used alloy.
-Typical Alloy：6063
-Temper：T3 T351 T4 T451 T6 T651 T6511 T7351
-Diameter: 3mm--130mm
-Length: 1000mm--6000mm
-Features ：Through heat treatment, can get excellent strength and performance, low tendency of stress corrosion cracking, its excellent weldability, corrosion resistance and good cold processablity make it wide applications with a
promiment future. Can be anodized coloring, but also painted enamel, to adapt to building decoration materials.

Extruded
Aluminum

Al-Alloy

Temper

Stretching Test

Hardness
HB

Temper

We Are Able To Produce Sizes Of

Tensile
Strength
Rm/Mpa

Yield
Strength
Rp0.2/Mpa

Elongation
A%

Diagonal

A/F

Length

Round bar

6063

>130

>65

>15

O
T4
T6/T651
T8
F

3mm~
130mm

3mm~
100mm

3mm~
130mm

5mm~
112mm

1000mm~
6000mm

>175

>130

>215

>170

>10

Annealing	TO
Hot work	T1	H111	H112
Cold work	H12	H14	H16	H18	H32	H34	H116	H321
Heat treatment	T3	T4	T5	T6	T8
Over aging treatment	T73	T74	T76	T79
Stress relieved	T351	T451	T651	T7351	T7451	T7651	T7951	T851

Mechanical Properties
Temper	Tensile Strength Rm/Mpa		Yield strength Rp0.2/Mpa		Elongationg Percentage A%		Hardness HB
6063 T5	Standard	≥175	Standard	≥130	Standard	≥8	_
6063 T5	Actual	200～230	Actual	145～160	Actual	20～25	60～70
6063 T6	Standard	≥215	Standard	≥170	Standard	≥10	_
6063 T6	Actual	255～265	Actual	197～203	Actual	16～23	75～85

Chalco aluminum bar produces are widely used in aviation, construction, automotive--these three major areas, high precision, small coarse crystal, uniform oxidation, good straightness, high turning performance, small grain size and moderate price, short delivery, all these prove us as the top of the world.
Applications：Architectural sections, frames, lightings, railing, ladders, furniture, fences, heat sink, electronic products shell car parts Sports Equipment Rail.
