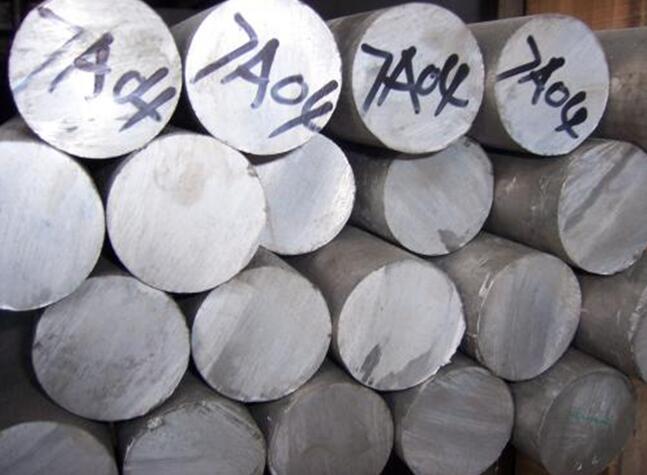

7A04 aluminum round bar

-Alloy:7A04
1. 7A04 is the most commonly used super-hard aluminum, which is a high-strength alloy that can be heat-treated. It is usually used in the quenching artificial aging state. At this time, the strength is much higher than that of the general hard aluminum, but the plasticity is low; the extruded semi-finished product and the aluminum-clad plate which are not too thick in cross section have good corrosion resistance and tend to stress concentration. The spot weldability is good, the gas welding is poor, and the machinability is good after heat treatment and low in the annealed state.

2. 7A04 is an Al-Zn-Mg-Cu ultra-high-strength aluminum alloy, also known as super-hard aluminum. It is an alloy that is supposed to be mature and used for a long time and widely used in super-hard aluminum. High strength, good heat treatment strengthening effect, moderate plasticity under annealing and new quenching conditions; unlike hard aluminum, the corrosion resistance under artificial aging is better than that of natural aging, and the natural aging process is slow, requiring 3 After the month, the age hardening peak can be reached, so 7A04 is used in the quenching artificial aging state. The disadvantage is that the stability of the structure is not high, the low-frequency fatigue strength is low, and there is a tendency of stress corrosion cracking. The alloy’s spot weld has good weldability, poor gas welding, good machinability after heat treatment, but poor machinability after annealing.

Chalco Aluminium stocks a variety of aluminum alloy bars (rods) grades and sizes tailored to your needs and specifications.

Send us email

Specification

Performance

Application

-Alloy:7A04

-Temper:T6 T651
-Diameter: 5mm--500mm
-Length: 1000mm--6000mm

-Features:The alloy’s spot weld has good weldability, poor gas welding, good machinability after heat treatment, but poor machinability after annealing

Composition of 7A04 T6 aluminum round bar

Element	Si	Fe	Cu	Mn	Cr	Mg	Zn	Ti	Al
7A04	≤0.5	≤0.5	1.4-2.0	0.2-0.6	0.1-0.25	1.8-2.8	5.0-7.0	≤0.1	Rem

Mechanical properties of 7A04 T6 aluminum round bar According to GB/T 3191-1998

加工方式 Processing	状态 Temper	直径mm Dia	抗拉强度Mpa Tensile Strength	屈服强度Mpa Yield Strength	伸长率 Elongation
Extruded	T6	22~150	≥530	≥400	≥6

Product advantages of Chalco aluminum’s aluminumround bar :

Chalco aluminum bar products are widely used in aviation, construction, automotive--these three major areas, high precision, small coarse crystal, uniform oxidation, good straightness, high turning performance, small grain size and moderate price, short delivery, all these prove us as the top of the world.

1.Accuracy:+/-0.02mm
Purpose: to guarantee the automatic processing of high precision machining parts.
2.Straightness <0.3m/2.5m
Purpose: Guarantee the speed requirements>8000 rpm, no material jittery.
3.Coarse crystal ring<0.5mm
Purpose: To reduce the amount of turning by the customer, improve efficiency and reduce costs.
4.Grain control
Purpose: to ensure that the 2、5、6、7 series aluminum alloy in the hard anodizing, anodizing uniform, color bright and beautiful.
5.Turning performance improvement
To improve the processing of uniform chip, improve the processing of yards yield.
-Applications:widely used for making load-bearing components and high-load parts,such as aircraft skins, screws, and force structures such as beam girders, bulkheads, ribs, landing gear and other aerospace, military equipment, chemical and other fields.
