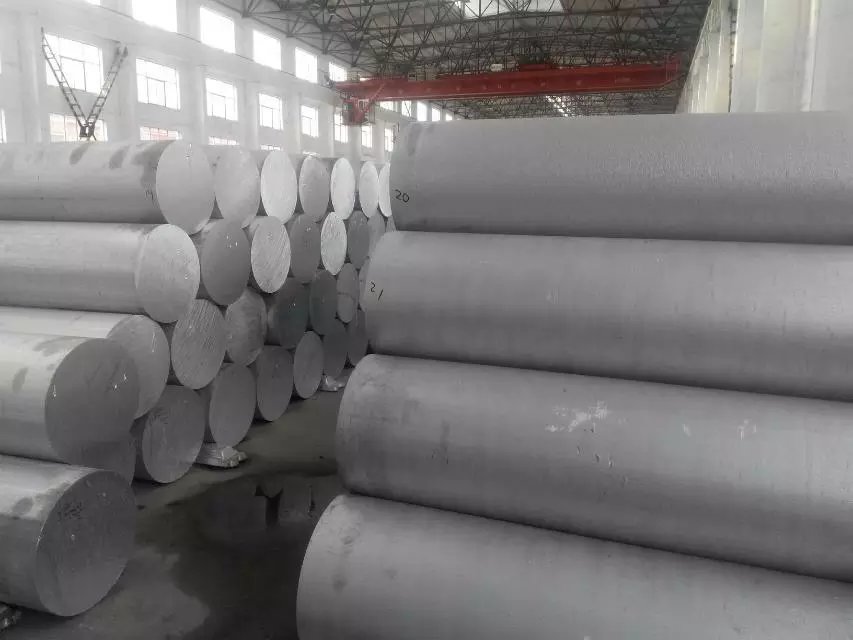

5040 aluminum alloy round bar rod

The 5040 aluminum alloy round bar  is mainly used for high-quality plasticity and good weldability. Low-load parts working in liquid or gaseous media, such as mailboxes, gasoline or lubricating oil pipes, various liquid containers and other deep-drawing products. Small load parts: Wire is used to make rivets. It is also commonly used in transportation vehicles, ship sheet metal parts, instruments, street lamp brackets and rivets, hardware products, electrical enclosures, etc.

Inspec. Item	Fe	Cu	Mg		Mn	Si	Zn	Cr		Al
Standard Value	0.40	0.10	2.2-2.8		0.10	0.25	0.10	0.15-0.35		Remain
机械性能PHYSICAL and MECHANICAL PROPERTIES
检测项目 Inspec. Item	抗拉强度Rm (Mpa) Tensile Strength			屈服强度Rp0.2 (Mpa) Yield Strength					弹性模量 （E） Modulus of Elasticity
Standard Value	170-305			≥65					69.3-70.7 Gpa


The bar of φ8-φ260mm can produce cold-rolled stretched round bars with tolerances below 0.3μm.
The products supplied by Chalco Aluminum Co., Ltd. are strictly produced according to various national standards such as GB/T3191-2010, GB/T6892-2006 and GB/T3190-2008 to ensure the excellent quality of the products. The product can be customized according to the special requirements of the customer.
