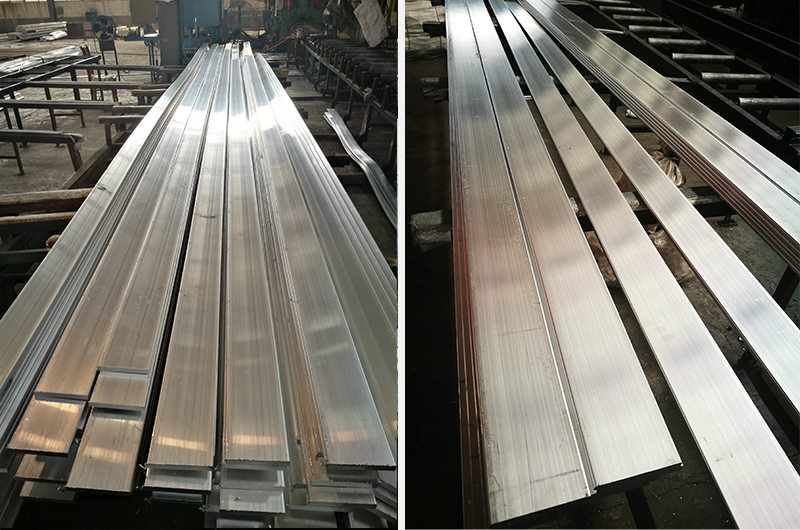

6101 t6 t61 Aluminum bus bar

6101 aluminum alloy is a kind of low alloyed a-mg-si system heat treatment hardenable alloy with medium strength, good conductivity and formability, which has become a hot research object in the field of conductive materials in recent years. Especially with the rapid development of new energy electric vehicles and fast charging technology, 6101 aluminum bus bar is more and more widely used by Tesla and other electric vehicle enterprises. It not only requires high strength and excellent conductivity, but also puts forward higher requirements for the bending processing and other properties of the alloy. The strength, conductivity and bending performance of aluminum alloy are not easy to have both. Therefore, without reducing too much material performance on the premise of ensuring conductivity, it has become the difficulty and focus of material production process control. It is generally required that the tensile strength of the material is 15~25 MPa, the heel strength is 150~210mp, the conductivity is greater than 56% IACS, and the 90 ° bending radius is 1 time of the thickness.
In the power and electrical industry, Al Mg Si aluminum alloy is widely used, but it requires relatively high conductivity of materials.



6101 aluminum bus bar is commonly used to process high-strength bus conductors. After aging treatment, its high-power metallographic structure, surface quality, hardness, conductivity and mechanical properties can meet the relevant requirements. Its conductivity is greater than 55% IACS, its tensile strength can reach 172~221mpa, and its yield strength can also reach 138~186mpa.
Chemical composition of 6101 aluminum bus bar
Al (minimum): allowance
Si：0.30~0.7
Fe：≤0.50
Cu：≤0.10
Mn：≤0.03
Mg：0.35~0.8
Cr：≤0.03
Zn：≤0.10
B：≤0.06
Ti：—
Other elements not specified: each: ≤ 0.03; Total: ≤ 0.10
Common temper: T6, T61

Application of 6101 aluminum bus bar

6101 aluminum bus bar has high hardness and conductivity, and is often used to process high-strength bus conductors.
Henan Chalco is a 6101 aluminum bar manufacturer, specializing in the production of various aluminum substrates, and the finished products are sold well at home and abroad. It has received feedback from many partners, especially 6101 aluminum bus bar, who expressed their great satisfaction with its products and professional attitude.
